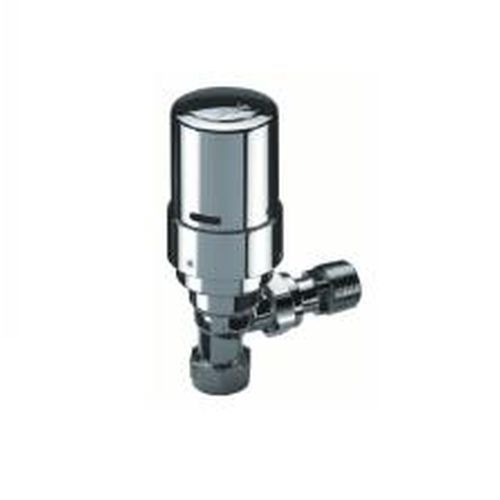

Danfoss RAS-D2 8/10/15mm Angle TRV Chrome

Danfoss RAS-D2 8/10/15mm All Chrome Angle Thermostatic Radiator Valve

- Unique flow selectable bi-directional valve
- High performance liquid sensor
- Convenient combi packs
- Radiator packs available with matching lockshield valves
- Reversible bi-directional angled pattern valve bodies
- Available in subtle white with chrome styling sensor or a stunning all chrome model to compliment designer radiators and towel rails

The new RAS-D2 radiator thermostats are the latest addition to the Danfoss TRV range. They are designed for use in 2-pipe domestic heating systems like designer radiators or towel rails.
All RAS-D2 Combi Packs comprise of a RA-FS bi-directional valve and a RAS-D2 sensor. Combi packs are also available with a RLV-D lockshield valve.
The valves have a ½” BSP (R½”) tail piece connection to the radiator and include 8mm, 10mm and 15mm compression fittings to connect the valve to the pipe work.
The valve bodies are reversible and bi-directional and include a flow-selectable feature to ensure trouble free installation without any risk of water hammer.
The valve is supplied with a protective cap, which can be used for manual regulation during the construction phase. The cap must not be used as a manual shut off device. RAS-D2 sensors incorporate a “Frost Protection” setting and a “Positive Off” feature for maximum user flexibility.
Temperature range is from 8°C to 28°C.
All Danfoss RAS-D2 sensors and RA-FS valves are manufactured to the highest standards and are approved to the European CEN standard EN215, which supersedes BS 6284, 1983.
All Danfoss radiator thermostats and valves are manufactured in factories, assessed and certified by BSI against ISO 9001 / BS 5750.
Valve bodies are manufactured from brass with chrome plating. The spindle in the gland seal is made of chrominium steel and works in a lifetime lubricated O-ring. The complete gland assembly can be replaced without draining down the system.
