Heatrae Sadia 150i 7034089
Heatrae Sadia 150i 7034089

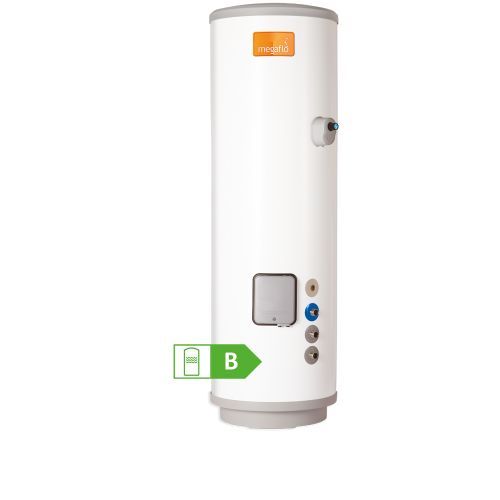

Megaflo Eco Slimline is a compact version of the Megaflo Eco, designed for homes where space for a hot water storage cylinder is limited and where standard size cylinders are unlikely to fit. By being taller and slimmer, the Megaflo Eco Slimline stores the same amount of hot water as an equivalent capacity cylinder and still provides exceptionally high levels of comfort and hot water performance.
Negating the need for an expansion vessel, the unit fits in the tightest of situations allowing for fast, tidy and compact installations that can be fitted almost anywhere. The Megaflo Eco Slimline is available in direct and indirect with capacities ranging from 100 to 200 litres, the perfect solution for domestic or light commercial solutions.
- Internal floating baffle expansion system
- Saves space and installation time
- Reduced heat loss
- Delivers 72 litres per minute at 3 bar
- Insulated T&P valve
- Long life and reliability
- High corrosion resistance
- High strength to weight ratio
Downloadables
| Height (mm) | 1123 |
|---|---|
| Width (mm) | 491 |
| Depth (mm) | 516 |
| Weight empty (kg) | 40 |
| Weight full (kg) | 186 |
| Capacity (Litres) | 150 |
| Internal expansion with floating baffle | Yes |
| Insulation thickness (mm) | 50 |
| Immersion heater rating (kw) | 1x 3 |
| Max flow at 1 bar (l/min) | 40 |
| Max flow at 3 bar (l/min) | 70 |
| Standing heat loss (kWh/24h) | 1.46 |
| Standing heat loss (kWh/year) | 533 |
| T&P relief valve (mm) | 1622 |
