Heatrae Sadia 300DD 95050356
Heatrae Sadia 300DD 95050356

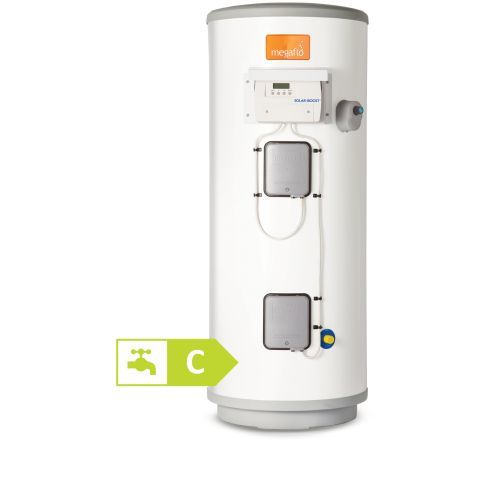

The Megaflo Eco Solar PV Ready is an unvented cylinder that heats water for free; accomplished by an innovative design that harnesses surplus solar electricity to generate hot water, saving energy and reducing utility bills.
It's estimated over 850,000 in the UK have solar PV panels install but only 50% are consuming the power produced by their PV panels. The Megaflo Eco Solar PV Ready can be used in conjunction with any PV array, existing or new. Installation is simple and using a separate remote control - the Megaflo Buddy - enables the user to simply and easily control and modify settings. The Megaflo Eco Solar PV Ready is available in direct and indirect, in capacities ranging from 170 to 300 litres.
- Megaflo Buddy controller that displays energy and savings
- Wireless communication
- Internal floating baffle expansion
- Inner cylinder corrosion guarantee for life
- Reduced heat loss
- Saves space and installation time
- No special wiring required
- Delivers 72 litres per minute at 3 bar
Downloadables
Megaflo brochure- Megaflo Eco Solar PV Ready Direct technical data sheet
- Megaflo-Eco-Solar-PV-Ready-Indirect-technical-data-sheet
- Megaflo Eco Solar PV Ready installation manual
- Solar-iBoost-Installation-Manual
- Megaflo-Buddy-User-Guide
- Warranty Registration Card
- Commissioning Checklist
- Fitting Instruction Addendum
| Height (mm) | 2048 |
|---|---|
| Width (mm) | 579 |
| Depth (mm) | 714 |
| Weight empty (kg) | 57 |
| Weight full (kg) | 340 |
| Capacity (Litres) | 300 |
| Internal expansion with floating baffle | Yes |
| Insulation thickness (mm) | 60 |
| Immersion heater rating (kw) | 2 x 3 |
| Max flow at 1 bar (l/min) | 40 |
| Max flow at 3 bar (l/min) | 70 |
| Standing heat loss (kWh/24h) | 1.69 |
| Standing heat loss (kWh/year) | 616.85 |
| T&P relief valve (mm) | 1574 |
