Heatrae Sadia Electromax 9kW - Underfloor 95022226
Heatrae Sadia Electromax 9kW - Underfloor 95022226

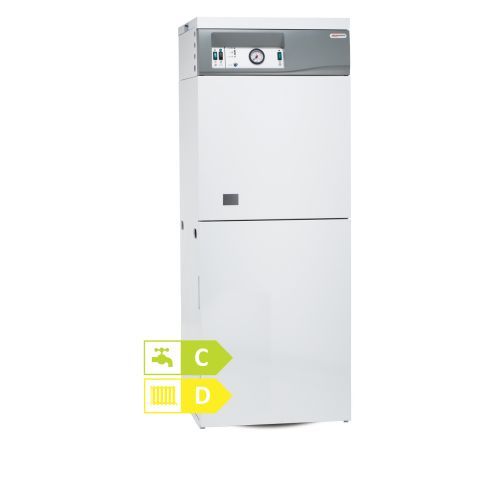

Electromax is the combination of an electric flow boiler with a hot water storage cylinder and a pre-plumbed, factory fitted circulating pump. Electromax can provide wet central heating and a hot water supply, both at the same time if required, with only a mains electrical connection and cold water supply needed.
The integral duplex stainless steel unvented cylinder has a 180 Litre capacity, delivering mains pressure showering, fast filling baths and a balanced supply to multiple tap outlets. Electromax is designed for sealed systems and is compact in size, easily fitting into a standard domestic airing cupboard and is available in two domestic kW sizes.
Controllable, efficient wet central heating
Programmable room thermostat to accommodate a wide range of off-peak tariffs
Uses standard radiators and thermostatic radiator valves
Designed for sealed systems
Model available for underfloor heating systems
High-performance domestic hot water from unvented direct hot water cylinder
Cylinder manufactured from high quality duplex stainless steel
No flue and no fuel tanks allow flexible installation location
Silent in operation
Automatic pump exercise feature - for periods when boiler is switched off
Front control panel indication to show boiler status
Proven solid-state technology for long life
Soft start and zero volt switching to avoid power surges
Min / max control adjust the water temperature output from the boiler
Minimal service and maintenance costs
No requirement for annual gas safety certificate
10 year on-site parts and labour warranty on the cylinder, two years on the boiler and other controls
Designed, engineered and manufactured in the UK
Downloadables
4.
Electromax Technical Data Sheet
| Height (mm) | 1476 |
|---|---|
| Width (mm) | 550 |
| Depth (mm) | 600 |
| Weight empty (kg) | 74 |
| Weight full (kg) | 256 |
| ERP rating | C/D |
