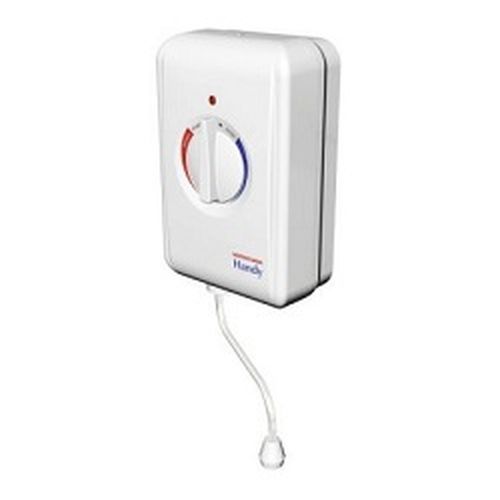

Heatrae Sadia Handy 3 Hand Wash 3.1Kw Chrome Spout 95020113

Heatrae Sadia Handy 3 Hand Wash 3.1Kw Chrome Spout 95020113

Description:

A choice of two compact instantaneous hand wash units. Handy 3 is rated at 3.1kW, and is suitable for connection to a convenient ring final circuit while the Handy 7 is a 7.2kW unit for applications where more hot water is required. These units now incorporate additional safety devices giving users further protection from scalding.

Features:

• Single-turn rotary control dial
• 'Power On' indicator
• Durable 200mm stainless steel swivel spout
• Consistent, splash free spray pattern
• Flow/temperature stabilised for constant outlet temperature
• Two levels of over temperature protection
• Excessive pressure protection
• New model is retro-fit to previous Heatrae Sadia Handy model
• 15mm female 'Push Fit' connection to water supply
• The single-turn rotary control dial is easy to operate, controlling both the temperature and flow rate of the water.
• These units offer comprehensive safety protection against the dangers of both scalding and excessive pressure build-up within the unit.
• Two level cut-out. The first level cut-out operates at 52°C and will re-set when the water has cooled down to 42°C. The second level of protection operates in extreme conditions and cuts out at 92°C and is not re-settable.
• The flow/temperature stabiliser ensures that a consistent outlet temperature is maintained even in conditions of variable water pressure.
• The pressure relief device ensures that in the case of freezing or blockage, pressure is not allowed to build up to dangerous levels within the unit.
• Extended Spout (380mm) is available as an Accessory.

Click below to download the Heatrae Sadia Handy Brochure And Installation Instructions

(Opens new window)

 Handy Brochure  Handy Installation Instructions
