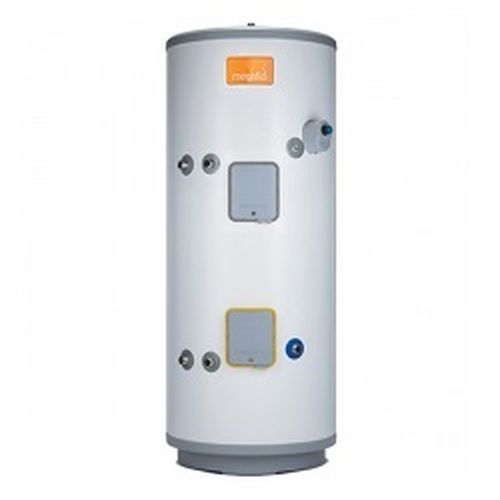

Heatrae Sadia Megaflo 210Si ECO 210 Litre Unvented Indirect Solar Cylinder 95050513

Heatrae Sadia Megaflo 210Si ECO 210 Litre Unvented Indirect Solar Cylinder 95050513

Description:

The MEGAFLO Eco Solar uses a special solar coil in the base of the cylinder that's designed to ensure maximum heat input and efficiency. The cylinder itself benefits from sophisticated Duplex stainless steel cylinder construction for maximum strength and corrosion resistance. We specify high-performance polyurethane foam between the inner vessel and outer casing for the best possible heat insulation. And to prove our attention to even the smallest detail, we provide an insulated case for the exposed temperature and pressure relief valve to further improve the heat insulation.

Features:

• Constructed in Duplex stainless steel for maximum strength - pressure tested to 15 bar.
• 190, 210, 250 and 300 litre capacities (indirect).
• Compatible with Megaflo Solar Thermal packages.
• Improved performance at low pressures down to 1 bar.
• New water inlet controls increase flow rates by up to 20%
• Improved insulation for maximum heat retention.
• Reduction in heat loss of 14%.
• No anode - eliminates costly anode maintenance.
• Insulated casing for the temperature and pressure relief valve to minimise heat loss.
• Unique 'L-shaped' long-life Superloy immersion heater reaches deeper into the tank giving more hot water.
• Titanium immersion as standard on all direct models.
• Patented cold water inlet diffuser minimises mixing of cold and hot water.
• High performance 'coil-in-coil' heat exchanger.
• Second purpose-designed solar coil to ensure maximum heat input and solar efficiency.
• Exceeds CheSS* Best Practice for recovery times and insulation.
• Complies with future European Energy Using Products Directive.
• Fully indemnified design service.
• Installer friendly design.
• Lifetime on-site parts and labour cylinder guarantee.
• Made in the UK.

Click below to download the Heatrae Sadia Megaflo SystemFit Brochure And Installation Instructions

(Opens new window)

 Megaflo Brochure  Solar Installation  Solar Technical

Please Note: This product incurs a £18.50 + VAT carriage charge due to weight and size
