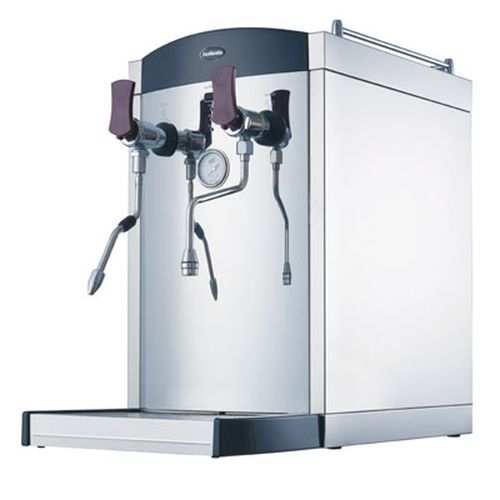

Instanta Barista Pro Steamer Boiler 13Ltr 6Kw (Wb2-6) SW13/6
Manufacturer Code: SW13/6
Discontinued
The SW13/6 Barista Pro boiler is the one that gave Instanta its reputation and is a favourite choice for high volume users. These superbly efficient models guarantee large volumes of water proving to be an essential piece of equipment for a varied beverage menu.
Features and Benefits
Advanced electronic controls
Large high-pressure non-drip taps
Drip tray included
Interchangeable steam nozzles, slow for frothing milk and fast for instant boiling
Low voltage switching on all controls
No overflow required
Powerful 14 psi operating pressure
Installation
Easy to install on a stable worktop
Plumbing
Designed for direct connection to a potable cold
water supply using the food quality hose supplied.
An isolating valve should be installed between the
supply and the heater. Rear supply connection.
Electrical
To be connected to 230 volt supply with a suitable
break capacity of 13 amps or 30 amps.
Construction
Stainless steel case.
Stainless steel heating chamber.
Annual Inspection
Current regulations require all pressure vessels to be inspected annually by a competent person.
Boiler Test Certificates
Copy test certificates are available on request
Downloads
Download Barista Pro WB-2 & WB-2/6KW Installation & User Manual
Download SW13/6 Information Pack
Download SW13/6 Specification Sheet
| Height (mm) | 585 |
|---|---|
| Width (mm) | 345 |
| Depth (mm) | 640 |
| Rear connection clearance (mm) | 45 |
| Power loading (kW) | 6 |
| Heat-up time (mins) | 26 |
| Recovery Rate (litres) | 0.9 |
| Rapid Draw-Off (litres) | 13 |
| Rapid Draw-Off (cups) | 78 |
| Hourly Output (litres) | 51 |
| Hourly Output (cups) | 306 |
