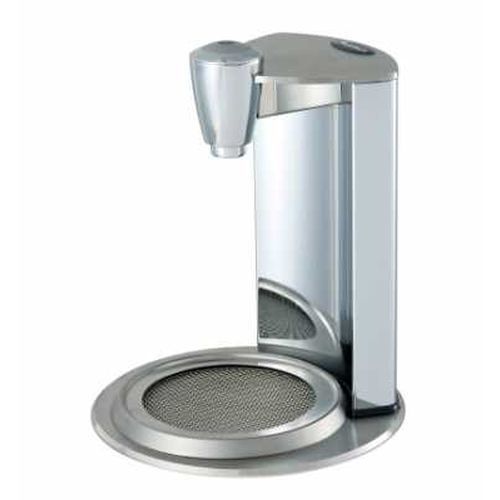

Instanta Instatap Under Counter Boiler 10Ltr (Ucd7) UCB10
Suitable for a small office to a football arena, these stylish chrome and stainless steel fonts are available with a choice of three powerful boilers.
Features and Benefits
- Electronically controlled for constant temperature up to 95C
- Programmable measured water delivery
- Early warning diagnostics with LCD read-out
- Automatic re-circulating mode to prevent under temperature drinks
Installation
Easy to install with font positioned in work surface with boiler sited below. Adequate space around unit to provide sufficient airflow and ventilation.
Electrical
Fitted with 1.7 metres of cable and a 13 amp moulded plug.
Construction
- Under counter case
- Stainless steel heating chamber
- Chrome-plated aluminium tap
Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) food quality hose supplied. An isolating value should be installed between the supply and the machine. Right-hand side water connection and overflow.
Downloads
Download UCB10 Information Pack
Download UCB10 Specification Sheet
Download UCB10 User Manual
| Height (mm) | 502 |
|---|---|
| Width (mm) | 254 |
| Depth (mm) | 440 |
| H1 (mm) | 150 |
| Power loading (kW) | 3 |
| Heat-up time (mins) | 29.5 |
| Recovery Rate (litres) | 0.5 |
| Rapid Draw-Off (litres) | 10 |
| Rapid Draw-Off (cups) | 60 |
| Hourly Output (litres) | 28 |
| Hourly Output (cups) | 168 |
| Stand by Loss (kW/h) | 0.09 |
