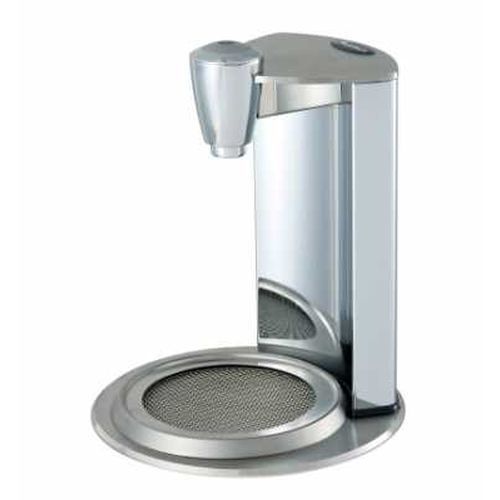

Instanta Instatap Under Counter Boiler 40Ltr Twin Tap (Ucd40/Sta) UCB40T
The UCB40T provides an impressive rapid draw off of 40 litres. Suitable for a stadium and arenas, the UCB40T is both compact and powerful, with push button dispense and twin fonts with adjustable temperatures.
Features and Benets
- Water temperature delivered - 85C (default for stadiums) adjustable between 80C & 95C
- Power Rating 3KW
- Programmable measured water delivery
- Early warning diagnostics with LCD read-out
- Five water level sensors
- Automatic re-circulating mode to prevent under temperature drinks
- Two Dispense Fonts: Dimensions W - 185 x D - 185 x H 225 mm
- Energy saving mode
Installation
Easy to install with font positioned in work surface with boiler sited below. Adequate space around unit to provide sufcient air ow and ventilation.
Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) food quality hose supplied. An isolating value should be installed between the supply and the machine. Right-hand side water connection and overow.
Electrical
13amp moulded plug to be connected to a 230 volt supply with break capacities as appropriate.
Construction
Stainless steel case
Stainless steel heating chamber
Downloads
Download UCB40T Information Pack
Download UCB40T User Manual
Download UCD40 Specification Sheet
| Height (mm) | 560 |
|---|---|
| Width (mm) | 465 |
| Depth (mm) | 500 |
| Rear connection clearance (mm) | 45 |
| Power loading (kW) | 3 |
| Heat-up time (mins) | 85 |
| Recovery Rate (litres) | 0.5 |
| Rapid Draw-Off (litres) | 40 |
| Rapid Draw-Off (cups) | 240 |
| Hourly Output (litres) | 28 |
| Hourly Output (cups) | 168 |
