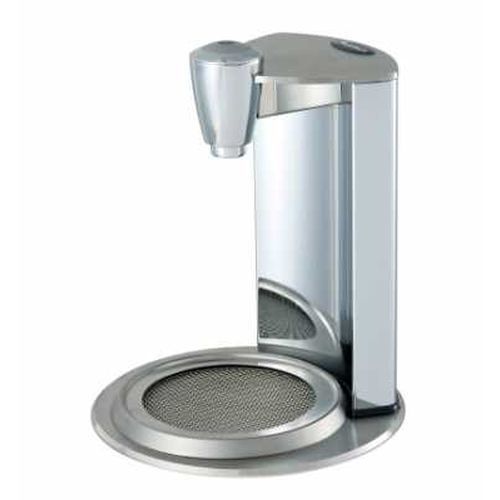

Instanta Instatap Under Counter Boiler 47Ltr (Ucd47) UCB47
Suitable for a small office to a football arena, these stylish chrome and stainless steel fonts are available with a choice of three powerful boilers.
Features and Benefits
Electronically controlled for constant temperature up to 95C
Programmable measured water delivery
Early warning diagnostics with LCD read-out
Five water level sensors (excludes UCD7)
Automatic re-circulating mode to prevent under temperature drinks
Installation
Easy to install with font positioned in work surface with boiler sited below. Adequate space around unit to provide sufficient airflow and ventilation.
Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) food quality hose supplied. An isolating value should be installed between the supply and the machine. Right-hand side water connection and overflow.
Electrical
To be connected to a 230 volt supply with break capacities as appropriate.
Construction
Stainless steel case.
Stainless steel heating chamber
Downloads
Download UCB47 Information Pack
Download UCB47 Specification Sheet
Download UCB47 User Manual
| Height (mm) | 560 |
|---|---|
| Width (mm) | 465 |
| Depth (mm) | 500 |
| Power loading (kW) | 4.5 |
| Heat-up time (mins) | 63 |
| Recovery Rate (litres) | 0.7 |
| Rapid Draw-Off (litres) | 47 |
| Rapid Draw-Off (cups) | 280 |
| Hourly Output (litres) | 42 |
| Hourly Output (cups) | 252 |
| Stand by Loss (kW/h) | 0.12 |
