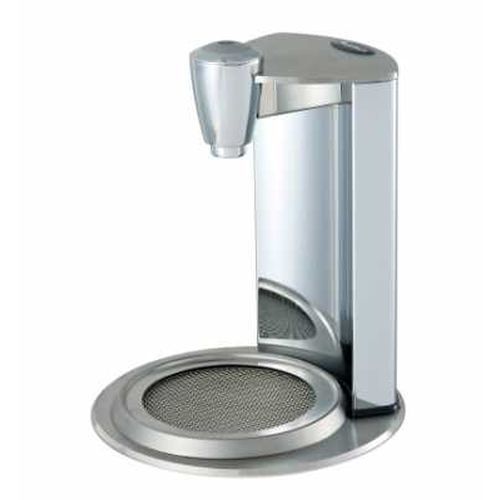

Instanta Instatap Under Counter Boiler 5Ltr New UCB5
The InstaTap is available with a choice of five different capacities. With programmable measurement of water and automatic re-circulating, youre guaranteed the right amount at the right temperature, every time
Features and Benefits
- Electronically controlled for constant temperature up to 95C
- Early warning diagnostics with LCD read-out
- Programmable measured water delivery
- Automatic re-circulating mode to prevent under temperature drinks
Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) food quality hose supplied. An isolating valve should be installed between the supply and the machine. Right-hand side water connection and overflow.
Installation
Easy to install with font positioned in work surface with boiler sited below. Adequate space around the unit to provide sufficient airflow and ventilation.
Electrical
Fitted with 1.7 metres of cable and a 13 amp moulded plug.
Construction
- Under counter case
- Stainless steel heating chamber
- Chrome-plated aluminium tap
Downloads
Download UCB5 Information Pack
Download UCB5 Specification Sheet
Download UCB5 User Manual
| Height (mm) | 585 |
|---|---|
| Width (mm) | 135 |
| Depth (mm) | 380 |
| Rear connection clearance (mm) | 75 |
| H1 (mm) | 150 |
| Power loading (kW) | 3 |
| Heat-up time (mins) | 18 |
| Recovery Rate (litres) | 0.5 |
| Rapid Draw-Off (litres) | 5 |
| Rapid Draw-Off (cups) | 30 |
| Hourly Output (litres) | 27 |
| Hourly Output (cups) | 168 |
