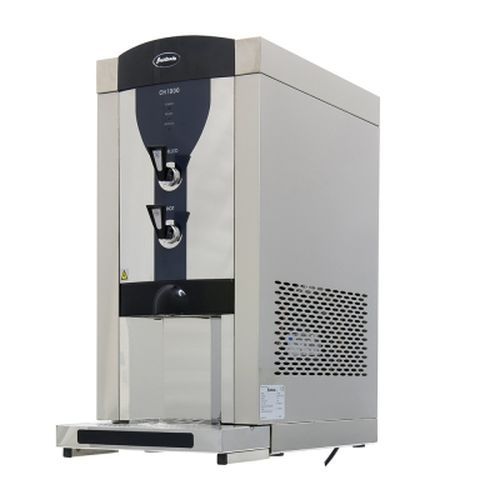

Instanta Sureflow Counter Top Boiling Chilled 28-10 Ltr (Ch1000) CTSBC28-10
Convenient and cost-efficient, the CTSBC28-10 gives the flexibility of filtered hot and chilled water on tap.
Features and Benefits
Constant hot water at 97C
Saves the cost, storage and transport of bottled water
In-line filter for fresh, clean-tasting water
Easy to use non-drip taps
Over 60 cups per hour of chilled water at <11C
Compact, reliable and long-lasting
Complete with moulded plug
Installation
Counter mounted with integral drip tray. Should be sited in a well-ventilated area.
Plumbing
Designed for direct connection to a potable cold water supply with a minimum pressure of two bar. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow.
Electrical
To be connected to 230 volt supply with a suitable break capacity of 13 amps.
Construction
Stainless steel case
Stainless steel heating chamber
Low voltage switching
Two safety cut-outs
Downloads
Download CTSBC28-10 Information Pack
Download CTSBC28-10 User Manual
Download CTSBS28-10 Specification Sheet
| Height (mm) | 579 |
|---|---|
| Width (mm) | 270 |
| Depth (mm) | 503 |
| Rear connection clearance (mm) | 45 |
| Power loading (kW) | 3 |
| Heat-up time (mins) | 12 |
| Recovery Rate (litres) | 0.5 |
| Boiling Water Minimum Hourly Output (litres) | 28 |
| Boiling Water Rapid Draw-Off after initial heat up (cups) | 20 |
| Cold water constant performance (cups per hour) | 60-80 |
| Stand by Loss (kW/h) | 0.1 |
