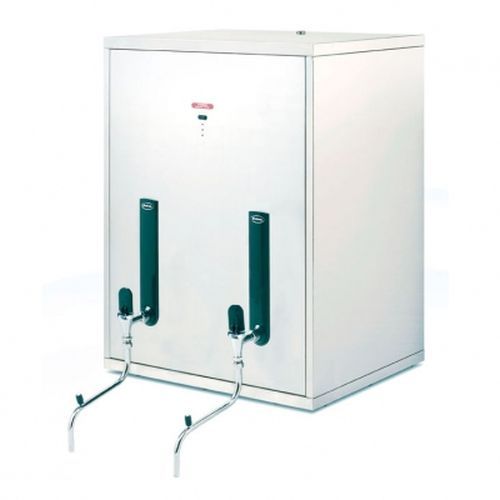

Instanta Sureflow High Volume Counter Top Boiler 135Ltr Twin Taps 18Kw CTSV135T/18
The CTSV135T/18 built in collaboration with the Ministry of Defence is an automatic water boiler designed to serve hundreds of people. Not exclusively for the military, they are equally at home in sporting arenas, concert venues or any other high volume site.
Features and Benefits
Advanced electronic controls
Two large non-drip taps with one swivel arm fitted as standard
Easy maintenance
Low voltage switching
Comprehensive diagnostic system
Installation
Easy to install on a stable, heavy duty worktop.
Plumbing
Designed for direct connection to a potable cold water supply using the food quality hose supplied.
An isolating valve should be installed between the supply and the heater. Rear connection and overflow.
Requires two bar incoming water pressure.
Electrical
To be connected to 400 volt 3 phase supply.
Construction
Brushed stainless steel case.
Stainless steel heating chamber.
Downloads
Download CTSV135T/18 Information Pack
Download CTSV135T/18 Specification Sheet
Download Titan Pro MOD18 Bulk Boiler Installation & User Manual
| Height (mm) | 896 |
|---|---|
| Width (mm) | 660 |
| Depth (mm) | 550 |
| Power loading (kW) | 18 |
| Heat-up time (mins) | 44 |
| Recovery Rate (litres) | 2.8 |
| Rapid Draw-Off (litres) | 135 |
| Rapid Draw-Off (cups) | 810 |
| Hourly Output (litres) | 204 |
| Hourly Output (cups) | 1224 |
| Stand by Loss (kW/h) | 0.5 |
