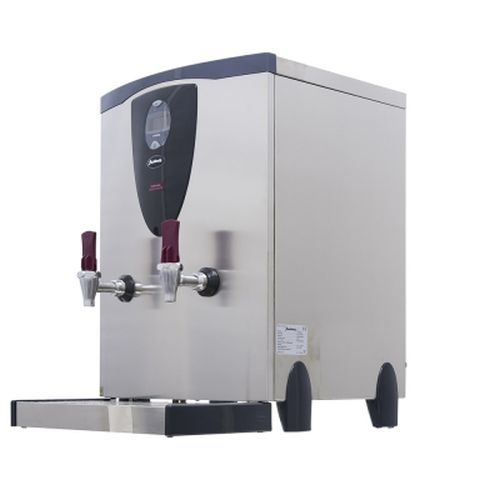

Instanta Sureflow High Volume Counter Top Boiler 36Ltr Twin Taps 9Kw(Ct6000-9) CTSV36T/9
These 6kW (single phase) and 9kW (three phase) large and stylish boilers will cope with the most demanding situations where large volumes are needed in a short period. All feature twin taps for speedy delivery.
Features and Benefits
Integral seven day programmable timer
Energy saving ECO mode
Temperature programmable between 80C - 98C
Comprehensive diagnostics system
Integral stainless steel drip tray included
Installation
Easy to install on a stable worktop.
Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow.
Electrical
The CT6000-9 and CT8000-9 are both 9kW and require a 400 volt, three phase supply.
Construction
Brushed stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.
Approvals
WRAS approved.
Downloads
Download CTSV36T/9 Information Pack
Download CTSV36T/9 Specification Sheet
Download CTSV36T/9 User Manual
| Height (mm) | 608 |
|---|---|
| Width (mm) | 440 |
| Depth (mm) | 555 |
| Rear connection clearance (mm) | 45 |
| Power loading (kW) | 9 |
| Heat-up time (mins) | 23 |
| Recovery Rate (litres) | 1.4 |
| Rapid Draw-Off (litres) | 36 |
| Stand by Power (kW/h) | 0.17 |
| Rapid Draw-Off (cups) | 216 |
| Hourly Output (litres) | 85 |
| Hourly Output (cups) | 500 |
