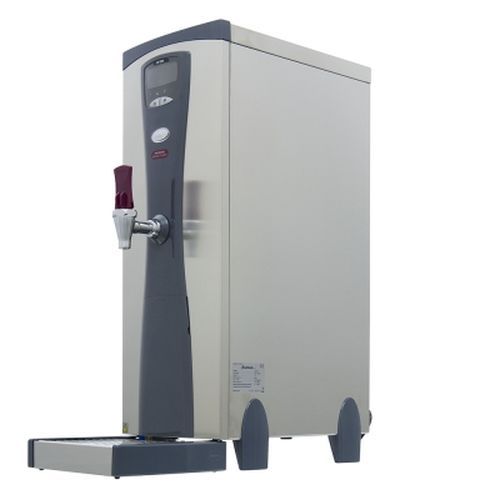

Instanta Sureflow Plus Counter Top Boiler 11Ltr High Tap Filtered 4.5 Kw (Cpf310) CTSP11H/4
The CTSP11H/4 is identical in outer appearance to the CTSP10H, but with a 4.5kW. Both models have high taps that are ideal for filling cafetieres, tall jugs or teapots.
Features and Benefits
Integral seven day programmable timer
Built-in multi-purpose filtration
Energy saving ECO mode
Temperature programmable between 80C - 98C
Two tier comprehensive diagnostics system
Integral stainless steel drip tray included
Programmable filter monitor from 2,000 19,500 litres
Installation
Easy to install on a stable worktop.
Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) hose supplied.
An isolating valve should be installed between the supply and the heater.
Rear supply connection and choice of rear or front overflow.
Electrical
Fitted with 1.75 metres of cable and a
13amp moulded plug.
Construction
Brushed stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.
Installation
Easy to install on a stable worktop.
Downloads
Download CTSP11H-4 Information Pack
Download CTSP11H-4 Specification Sheet
Download SureFlow Plus CPF Installation & User Manual
| Height (mm) | 705 |
|---|---|
| Width (mm) | 260 |
| Depth (mm) | 555 |
| Rear connection clearance (mm) | 45 |
| Power loading (kW) | 4.5 |
| Heat-up time (mins) | 16 |
| Recovery Rate (litres) | 1 |
| Rapid Draw-Off (litres) | 11 |
| Rapid Draw-Off (cups) | 66 |
| Hourly Output (litres) | 57 |
| Hourly Output (cups) | 342 |
| Stand by Loss (kW/h) | 0.084 |
