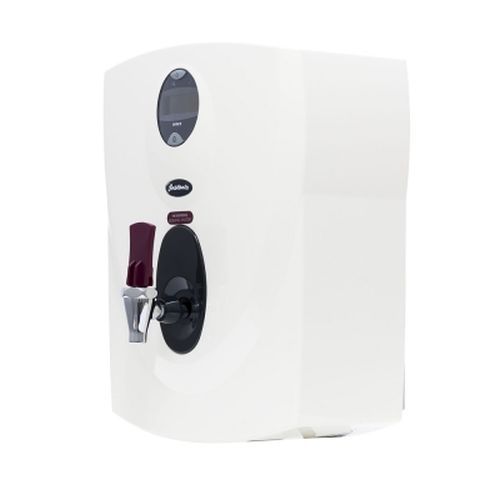

Instanta Sureflow Plus Wall Mounted 3Ltr White (Wm3) WMSP3W
These high performance wall mounted boilers are the perfect solution for hot drink requirements. Designed to last, the small and medium models are available in impact resistant thermoplastic or stainless steel cases.
Features and Benefits
Integral 7 day programmable timer
Programmable filter change indicator
Electronic temperature control, programmable between 80C - 98C
Comprehensive diagnostics system
Installation
As per instructions supplied.
Plumbing
Designed for direct connection to a potable cold water supply using the fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a rear connection and overflow and requires two bar incoming water pressure.
Electrical
To be connected to 230 volt 13 amp or 30 amp (6kW) supply.
Construction
Stainless steel or impact resistant thermoplastic case.
Stainless steel heating chamber.
Low voltage switching.
2 safety cut-outs.
Approvals
WRAS approved.
Downloads
Download SureFlow Premium Wall Mounted Installation & User Manual
Download WMSP3W Information Pack
Download WMSP3W Specification Sheet
| Height (mm) | 452 |
|---|---|
| Width (mm) | 332 |
| Depth (mm) | 210 |
| Tap Depth (mm) | 90 |
| Power loading (kW) | 3 |
| Heat-up time (mins) | 11 |
| Recovery Rate (litres) | 0.5 |
| Rapid Draw-Off (litres) | 3 |
| Rapid Draw-Off (cups) | 18 |
| Hourly Output (litres) | 28 |
| Hourly Output (cups) | 168 |
| Stand by Loss (kW/h) | 0.1 |
