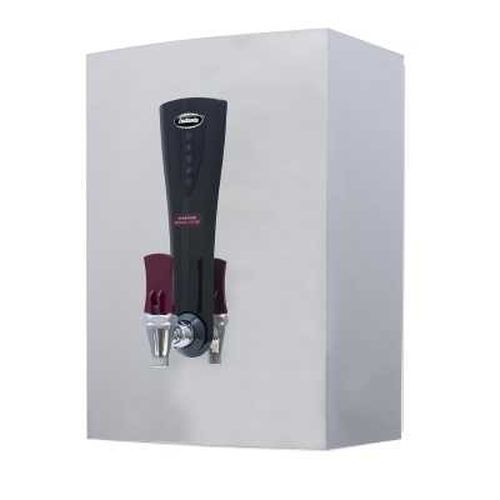

Instanta Sureflow Wall Mounted 10Ltr Mirror Finish (Wa10N) WMS10
The WM range offers three wall mounted models with simple stainless steel cases providing a plentiful supply of boiling water. For customers who are working to a budget and want Instanta quality and reliability but with slightly lower specification.
Features and Benefits
Introductory diagnostic system
Three models available
Large heavy duty non-drip taps
Mirror finished stainless steel case
Installation
As per instruction manual supplied.
Plumbing
Designed for direct connection to a potable cold water supply using fittings supplied.An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a rear connection and overflow and requires two bar incoming water pressure.
Electrical
To be connected to 230 volt 13 amp supply.
Construction
Polished stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut outs.
Approvals
WRAS approved.
Downloads
Download WMS10 Information Pack
Download WMS10 Specification Sheet
| Height (mm) | 480 |
|---|---|
| Width (mm) | 340 |
| Depth (mm) | 247 |
| Tap Depth (mm) | 85 |
| Power loading (kW) | 3 |
| Heat-up time (mins) | 30 |
| Recovery Rate (litres) | 0.5 |
| Rapid Draw-Off (litres) | 10 |
| Rapid Draw-Off (cups) | 60 |
| Hourly Output (litres) | 27 |
| Hourly Output (cups) | 162 |
| Stand by Loss (kW/h) | 0.1 |
