John Guest Speedfit JGUFHPACK30/4 Underfloor Heating Pack 30 Meters

£984.77 £820.64
SKU
139062
Manufacturer Code: JGUFHPACK30/4

Speedfit Underfloor Product Banner

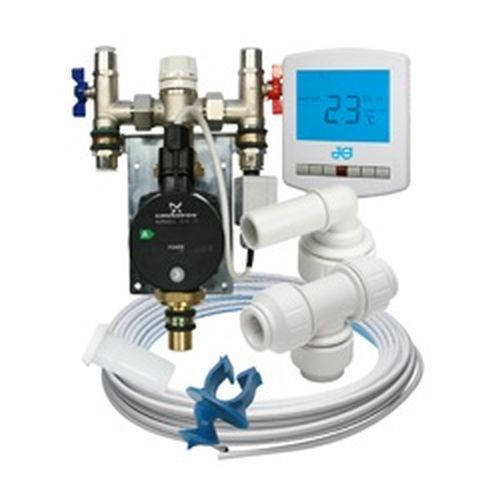

John Guest Speedfit JGUFHPACK30 Underfloor Heating Pack 30 Meters

The JGUFHPACK30 Speedfit Underfloor Heating Control Unit is the ideal way to provide heating to a conservatory or room extension, up to 30m2

The unit is pre-assembled and pre-wired to allow for a fast and simple installation. It can be plugged into any convenient electrical socket or spur.

The control unit has integral ball valves to allow for isolation from the primary heating system, an adjustable blending valve and a six metre head circulation pump. An anti-vibration mounting bracket ensures silent operation.

Speedfit push in connections make for a fast connection to pipework.

Speedfit recommend connection to the main central heating flow and return distribution system, but it is also possible to connect to the nearest radiator supply pipe. If connected to an existing radiator circuit, the pump will be unable to operate independently which means you are only able to obtain hot water when the radiator system is on.

A full and detailed installation guide is provided with each unit.

JGUFHPACK30 - For conservatories or room extensions up to 30sq metres. Pack Contains:

  • 2 x 15mm x 100m Coil Polybutylene Pipe
  • 1 x Single Room Control Unit
  • 1 x Programmable Room Thermostat
  • 300 x 15mm Pipe Clips
  • 8 x 15mm Pipe Inserts
  • 2 x 15mm Speedfit Equal Tees
  • 2 x 15mm Speedfit Swivel Elbows

Click below to download John Guest Underfloor Heating product brochure and technical information

(Opens new window)
