Saniflo 6102 Sanicubic 2 Pro
Saniflo 6102 Sanicubic 2 Pro
The Sanicubic 2 Pro is a high performance macerator pump for commercial use. It contains two separate, load balanced pumps with high performance macerating systems and will operate alternatively. In the event of inflow overload, both motors run at the same time or in the unlikely event that one motor fails, the other one will take over.
Takes waste from WC’s, basin, bath, shower, bidet, washing machine, dishwasher and sink.
Tough, reliable macerator ideal for busy business environments and commercial situations

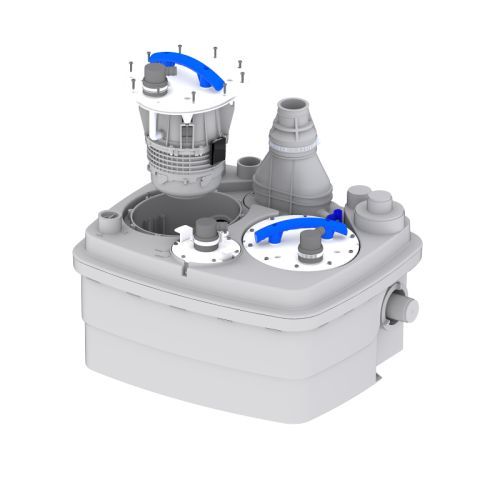

New design with easily removable motor for servicing and maintenance
Pumps up to 11m vertically or 110m horizontally
The Sanicubic 2 Pro is a tough, reliable macerator pump which contains two separate load balanced macerator systems which operate alternately ensuring even wear of motors. It is ideal for busy business and commercial situations. The unit can handle waste water from WC’s, a basin, sink, washing machine, dishwasher, shower, bath, and bidet. The Sanicubic 2’s new design means the motors are easily removable for servicing and maintenance as is the water level indicator. It has two alarms for ultimate safety a hard-wired alarm and a remote wireless alarm. The Sanicubic 2 Pro has four inlets, the centre height of inlets is 140mm and it discharges through 50 mm pipework. It has a working temperature of 35ºC, however it will handle temperatures up to 75ºC for short periods. The Sanicubic 2 has a tank capacity of 45 litres and a flow rate 13m³/h. It can be connected to a Building Management System. The Sanicubic 2 Pro comes with a 2 year warranty.
Designed, made and tested in our factory in France and with 60 years of expertise and innovation, the Sanicubic 2 offers you peace of mind and with the back up from our service team there’s never been a better time to install a Saniflo.
Downloadables
Weight (Kg) | 35 Kg |
---|---|
Electrical Class | 1 |
IP Rating | IP68 |
Discharge Pipe Diameter | DN40 (Ø ext. 50 mm) |
Maximum Incoming Water Temperature | 70 °C intermittently (max 5 min) |
Maximum Recommended Depth | 11 Metre |
Maximum Depth (Q eq 0 L/min) | 13 Metre |
ON/OFF Level | 140/60 mm |
Control Box IP Rating | IPX4 |
Alarm Level | 210 mm |
Tank Volume | 45 Litre |
