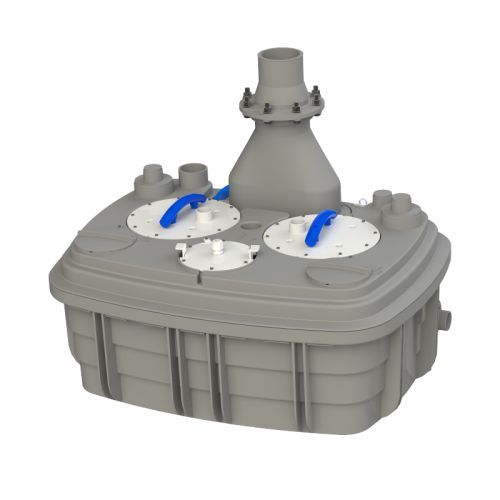

Saniflo 6105 Sanicubic 2 XL
Saniflo 6105 Sanicubic 2 XL
The Sanicubic 2 XL is our largest lifting station for commercial use handling up to 40m³/hour of waste water via two 2kW pumps. It is easy to install as it stands on the floor and does not need to be positioned below ground.
Ideal for large volume commercial situations
Large bore vortex pump which can pump away waste without the need to macerate
Large 120 litre tank volume
Pumps up to 10m vertically through 80m pipework, or up to 6m vertically through 100m pipework, can pump up to 110m horizontally
The Sanicubic 2 XL is our largest lifting station for commercial use. It can take waste from toilets, basins, bath, shower, bidet, washing machine, dishwasher and sink. It is easy to install as there is no need to excavate as it does not need to be positioned below ground. The Sanicubic 2 XL has a large bore vortex pump which can pump waste away without the need to macerate. The 2 motors are easily removable for servicing and maintenance and it has a large 120 litre tank. It has 2 alarms for ultimate safety – both are hard-wired. It has a working temperature of 35ºC, however it will handle temperatures up to 70ºC for short periods. The Sanicubic 2 XL has four inlets that can take up to 110 mm and an additional inlet that can take up to 50 mm, centre height of inlets is 180 mm and it discharges through 80 mm pipework for maximum vertical lift 10 metres, 100 mm pipework maximum vertical lift of 6 metres. It has volt free contact for connection to a Building Management System. The Sanicubic 2 XL comes with a 2 year warranty.
Designed, made and tested in our factory in France and with 60 years of expertise and innovation, the Sanicubic 2 XL offers you peace of mind and with the back up from our service team there’s never been a better time to install a Saniflo.
Downloadables
|
|
|
|
| Weight (Kg) | 55 Kg SANICUBIC® 2 XL (single-phase): 59 kg; SANICUBIC 2 XL (three-phase): 60 kg |
|---|---|
| Inlet Diameter | 1 inlet DN 40/50 (Ø ext. 40/50 mm) • 4 inlets DN 40/50/100/110 (Ø ext. 40/50/100/110 mm) |
| Motor Power | SANICUBIC® 2 XL (single-phase): 2 x 2000 W; SANICUBIC 2 XL (three-phase): 2 x 3500 W |
| Supply Voltage | SANICUBIC® 2 XL (single-phase): 220-240 V / 50 Hz; SANICUBIC 2 XL (three-phase): 230-400V / 50Hz |
| Electrical Class | 1 |
| IP Rating | IP68 |
| Max Flow Rate | SANICUBIC® 2 XL monophasée : 40 m3/h; SANICUBIC® 2 XL triphasée : 55 m3/h |
| Maximum Current Consumption | SANICUBIC® 2 XL (single-phase): 16 A; SANICUBIC 2 XL (three-phase): 12 A |
| Discharge Pipe Diameter | DN100 (Ø ext. 110 mm) |
| Maximum Incoming Water Temperature | 70 °C intermittently (max 5 min) |
| Maximum Recommended Depth | SANICUBIC® 2 XL (single-phase): 6 m (DN100) and 10 m (DN80); SANICUBIC 2 XL (three-phase): 11 m (DN100) 14 m (DN80) |
| Maximum Depth (Q eq 0 L/min) | SANICUBIC® 2 XL (single-phase): 13 m; SANICUBIC 2 XL (three-phase): 17 m |
| ON/OFF Level | 166/100 mm |
| Control Box IP Rating | IPX4 |
| Alarm Level | 240 mm |
| Tank Volume | 120 Litre |
| Clearance | 50 mm |
