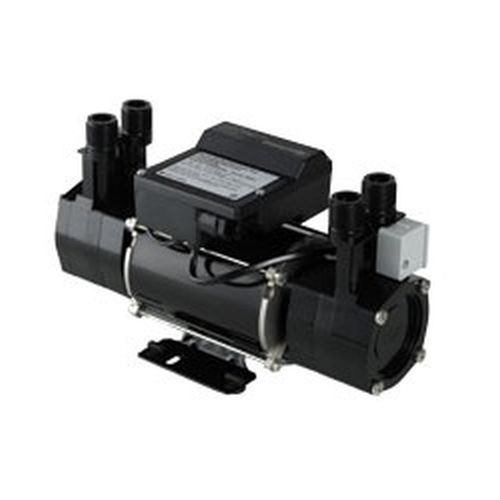

Stuart Turner 46407 Showermate Standard 1.8 Bar Twin Positive Head Shower Pump

Stuart Turner 46407 Showermate Standard 1.8 Bar Twin Positive Head Shower Pump

A Showermate Standard 1.8 bar twin pump is designed to boost the incoming hot and cold water supply to an individual shower, bath / shower mixer, or mixer tap.

Technical Specification:

The Pump

• Flow switch sensitivity: approx. 0.8 l/min
• Maximum inlet head: 13 metres
• Plumbing connection: 15 mm push-in
• Flexible hose: 4 off 15 mm push-in x 200 mm long
• Anti vibration feet: Yes
• WRAS compliant: Yes

The Motor

• Power Supply: 230/1/50
• Enclosure rating: IP22
• Motor: Induction permanent capacitor auto resetting protective thermotrip
• Power consumption: 405 Watts
• Full load: 1.8 Amps
• Fuse rating: 5 Amps
• Pre wired: Yes
• Rating: Int (S3) 30 mins on/30 mins off @ 9 l/min
• Gross weight (packed): 4.9 Kg
• 1 Year Guarantee: Can be extended free to 2 years -United Kingdom only
• Part Number: 46407 (United Kingdom specification only)

Click below to download Stuart Turner Showermate Standard installation and technical information

Data Sheet Brochure Installation Guide
