Stuart Turner 46410 Monsoon Universal 3.0 Bar Twin Negitive/Positive Head Shower Pump
Stuart Turner 46410 Monsoon Universal 3.0 Bar Twin Negitive/Positive Head Shower Pump

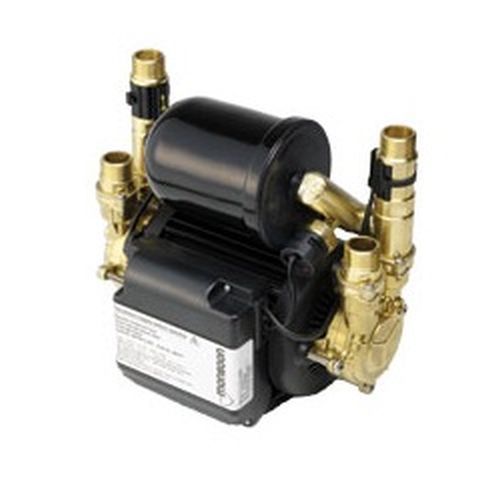

The Monsoon Universal 3.0 bar twin pump is designed for installation into vented systems to pump both the hot and cold water supplies - boosting both equally.
They can be used to:
- Boost hot and cold water services to the complete home, bathroom, kitchen or cloakroom.
- Pressurise the supply in applications such as loft conversions, where outlets are higher than the water source.
- Pressurise the complete system where it is uncertain whether a positive flow naturally exits.
Technical Specification:
The Pump
- Hot & cold inlet strainers: Yes
- Stuart hard face mechanical seal: Yes
- Flow switch sensitivity: approx. 0.6 l/min
- Pressure switch: Yes
- Maximum inlet head: 8 metres
- Plumbing connection: G ¾" male
- Flexible hose: G ¾" female x 22 mm push-in c/w isolating valves x 305 mm long
- Anti vibration feet: Yes
- WRAS approved: Yes
The Motor
- Power Supply: 230/1/50
- Enclosure rating: IPX4
- Motor: Induction type, permanent capacitor, auto resetting protective thermotrip
- Power consumption: 655 Watts
- Full load: 2.9 Amps
- Fuse rating: 5 Amps
- Pre wired: Yes
- Rating: Continuous (S1) @ 9 l/min and above
- Gross weight (packed): 10.4 Kg
- 3 Year Guarantee: Can be extended free to 5 years -United Kingdom only
- Part Number: 46410 (United Kingdom specification only)
Click below to download Stuart Turner Monsoon Universal installation and technical information
