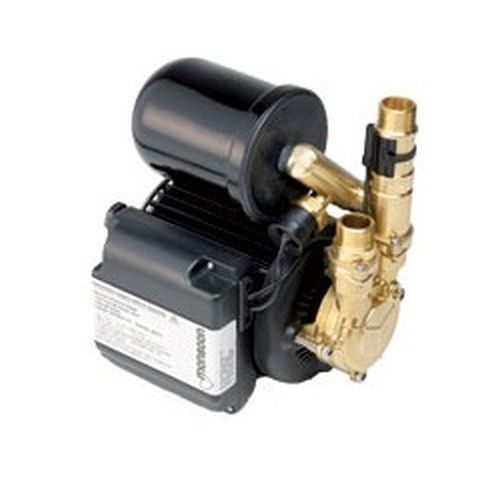

Stuart Turner 46414 Monsoon Universal 4.5 Bar Single Negitive/Positive Head Shower Pump
Stuart Turner 46414 Monsoon Universal 4.5 Bar Single Negitive/Positive Head Shower Pump
The Monsoon Universal 4.5 bar single pump can be used in pairs to boost vented systems to pump hot and cold water supplies independently, or as a single pump to boost a water supply as required.
- Ideal for boosting hot water service to a common mixer where the cold supply is mains fed.
- Ideal for boosting hot and cold supplies separately.
- Suitable for increasing water pressure to a combi boiler via a break tank.
Technical Specification:
The Pump
- Inlet strainer: Yes
- Stuart hard face mechanical seal: Yes
- Flow switch sensitivity: approx. 0.6 l/min
- Pressure switch: Yes
- Maximum inlet head: 12 metres
- Plumbing connection: G ¾" male
- Flexible hose: G ¾" female x 22 mm push-in c/w isolating valves x 305 mm long
- Anti vibration feet: Yes
- WRAS approved: Yes
The Motor
- Power Supply: 230/1/50
- Enclosure rating: IPX4
- Motor: Induction type, permanent capacitor, auto resetting protective thermotrip
- Power consumption: 555 Watts
- Full load: 2.5 Amps
- Fuse rating: 5 Amps
- Pre wired: Yes
- Rating: Continuous (S1) @ 9 l/min and above
- Gross weight (packed): 8.4 Kg
- 3 Year Guarantee: Can be extended free to 5 years -United Kingdom only
- Part Number: 46414 (United Kingdom specification only)
Click below to download Stuart Turner Monsoon Universal installation and technical information
(Opens new window)
Data Sheet Brochure Installation Guide Write Your Own Review
