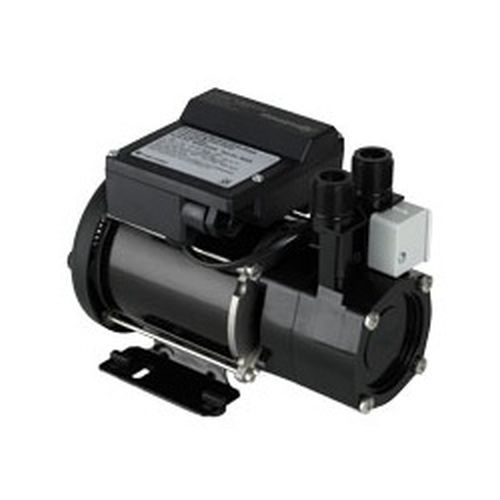

Stuart Turner 46429 Showermate Standard 2.6 Bar Single Positive Head Shower Pump
Stuart Turner 46429 Showermate Standard 2.6 Bar Single Positive Head Shower Pump
The Showermate Standard 2.6 bar single pump is designed to improve water supplies to single taps or to pump blended water from a shower mixer.
Technical Specification:
The Pump
- Flow switch sensitivity: approx. 0.8 l/min
- Max. inlet head: 13 metres
- Plumbing connection: 15 mm push-in
- Flexible hose: 2 off 15 mm push-in x 200 mm long
- Anti vibration feet: Yes
- WRAS compliant: Yes
The Motor
- Power Supply: 230/1/50
- Enclosure rating: IPX4
- Motor: Induction permanent capacitor auto resetting protective thermotrip
- Power consumption: 245 Watts
- Full load: 1.1 Amps
- Fuse rating: 5 Amps
- Pre wired: Yes
- Rating: Int (S3) 30 mins on/30 mins off @ 9 l/min
- Gross weight (packed): 4.2 Kg
- 1 Year Guarantee: Can be extended free to 2 years -United Kingdom only
- Part Number: 46429 (United Kingdom specification only)
Click below to download Stuart Turner Showermate Standard installation and technical information
