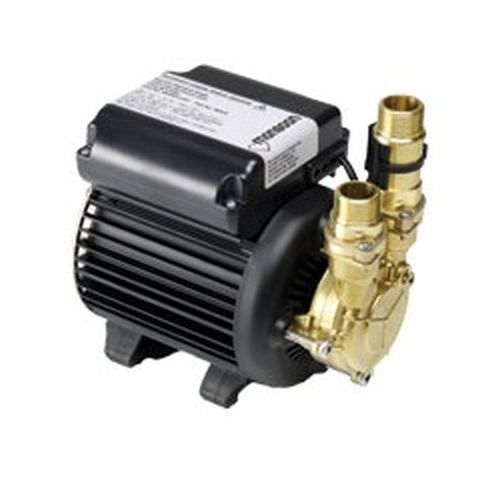

Stuart Turner 46497 Monsoon Standard 2.0 Bar Single Positive Head Shower Pump
Stuart Turner 46497 Monsoon Standard 2.0 Bar Single Positive Head Shower Pump
The Monsoon Standard 2.0 single pump is ideal for boosting the water pressure and flow in vented systems.
They may be used to:
- Boost the water pressure in either the hot or cold water supply.
- Boost the blended water outlet between the shower valve and the shower rose.
- Not suitable for pumping water supplies to common mixers.
Technical Specification:
The Pump
- Inlet strainer: Yes
- Stuart hard face mechanical seal: Yes
- Flow switch sensitivity: approx. 0.6 l/min
- Maximum inlet head: 8 metres
- Plumbing connection: G ¾" male
- Flexible hose: G ¾" female x 22 mm push-in c/w isolating valves x 305 mm long
- Anti vibration feet: Yes
- WRAS approved: Yes
The Motor
- Power Supply: 230/1/50
- Enclosure rating: IPX4
- Motor: Induction type, permanent capacitor, auto resetting protective thermotrip
- Power consumption: 245 Watts
- Full load: 1.1 Amps
- Fuse rating: 5 Amps
- Pre wired: Yes
- Rating: Continuous (S1) @ 9 l/min and above
- Gross weight (packed): 6.5 Kg
- 3 Year Guarantee: Can be extended free to 5 years -United Kingdom only
- Part Number: 46497 (United Kingdom specification only)
Click below to download Stuart Turner Monsoon Standard installation and technical information
(Opens new window)
Data Sheet Brochure Installation Guide Write Your Own Review
