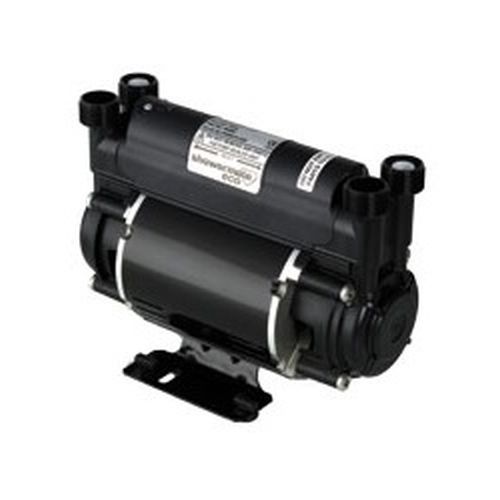

Stuart Turner 46502 Showermate Eco 1.5 Bar Twin Positive Head Shower Pump
Stuart Turner 46502 Showermate Eco 1.5 Bar Twin Positive Head Shower Pump
A Showermate eco 1.5 bar twin pump is designed to boost the incoming hot and cold water supply to an individual shower, bath / shower mixer, or mixer tap.
Technical Specification:
The Pump
- Flow switch sensitivity: approx. 0.8 l/min
- Maximum inlet head: 10 metres
- Plumbing connection: 15 mm push-in
- Flexible hose: 4 off 15 mm push-in x 200 mm long
- Anti vibration feet: Yes
- WRAS compliant: Yes
The Motor
- Power Supply: 230/1/50
- Enclosure rating: IP22
- Motor: Induction permanent capacitor auto resetting protective thermotrip
- Power consumption: 385 Watts
- Full load: 1.7 Amps
- Fuse rating: 5 Amps
- Pre wired: Yes
- Rating: Int (S3) 30 mins on/30 mins off @ 9 l/min
- Gross weight (packed): 4.0 Kg
- 1 Year Guarantee: Can be extended free to 2 years -United Kingdom only
- Part Number: 46502 (United Kingdom specification only)
Click below to download Stuart Turner Showermate Eco installation and technical information
(Opens new window)
Data Sheet Brochure Installation Guide Write Your Own Review
