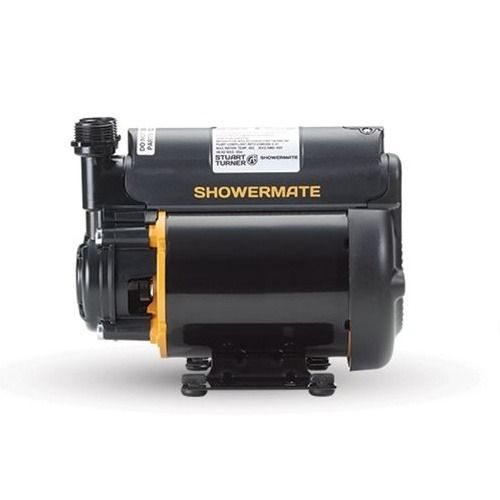

Stuart Turner 47340 SHOWERMATE S2.0 bar Single Positive Head Shower Pump
Stuart Turner 47340 SHOWERMATE S2.0 bar Single Positive Head Shower Pump
SHOWERMATE Standard 2.0 bar Single Pump. Can be used in pairs to pump hot and cold water supplies independently, or as a single pump to boost the hot or cold water supply as required.
High quality, high performance compact pump supplied with two 15 mm anti-vibration flexible hoses.
All Showermate Standard pumps are suitable for use in open vented (gravity fed) systems for positive head applications where the existing flow due to gravity is more than 2 litres/min.
- Boosting hot or cold water supplies to a single tap or the blended water between a shower valve and shower head in low pressure gravity systems
- Suitable for use where there is already more than 2 litre/min flow from the outlet(s) to be boosted
General:
GTIN: 5050400473404
Conformity certification: UKCA | CE
Warranty: 3 years (subject to conditions)
Features:
Pump type: Peripheral / Regenerative
Pump control: Flow switch
Pump heads: Single
Anti-vibration mounting feet: Yes
Flexible hoses: Yes
Dry run protection: Yes
Flow switch sensitivity: 0.8 l/min
Performance:
Maximum head - closed valve (bar / metres): 2.0 bar / 20 metres
Typical head @ 9 l/min (bar / metres): 1.0 bar / 10 metres
Typical head @ 18 l/min (bar / metres): 0.2 bar / 2 metres
Maximum flow (l/min): 19 l/min
Click below to download Stuart Turner Showermate Eco installation and technical information
Data Sheet Brochure Installation Guide
