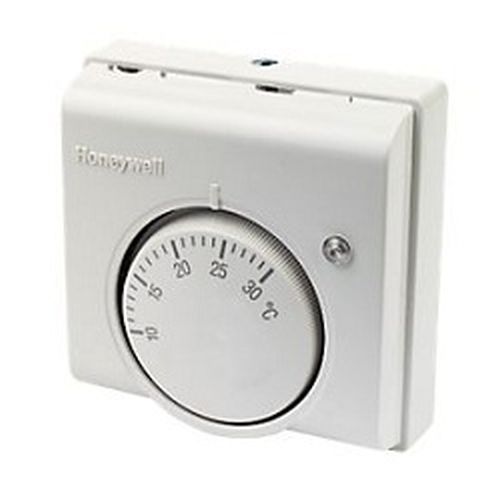

T6360 Central Heating Room Thermostat With Neon

T6360 Room Thermostat With Neon

The T6360 is a mains voltage Room Thermostat designed to give automatic temperature control of domestic wet central heating systems. It can be used to directly switch a circulating pump or boiler, or to operate spring return and motor open/motor close zone valves.

The T6360 can switch electrical heating loads up to 10A. The T6360 thermostat can also be used for cooling applications.

Features

• Dual diaphragm temperature sensing element
• Suitable for surface or switch box mounting
• Heat anticipator for close temperature control
• 10 to 30C setpoint range
• Change-over contact switching (cooling loads)
• Double insulated

Options

• Temperature setback model
• Tamper resistant model
• Model with indicator lamp
• Setting dial marked 1 to 5
• High current rated model
• Range stops
