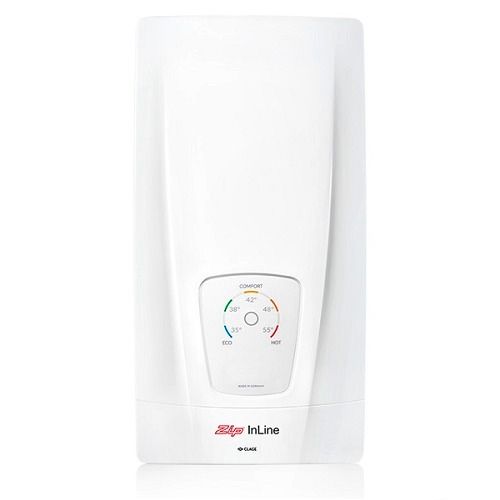

Zip DCXNEXT InLine 18-27kW Electric Instantaneous Water Heater 3 Phase
Zip DCXNEXT InLine 18-27kW Electric Instantaneous Water Heater Three Phase
Three Phase Electric
Product Details:
Zip InLine DCXNEXT electronic instantaneous water heater single outlet or multiple outlets. Highly efficient bare wire for fast heat up and zero standing losses, Zip InLine is the most energy efficient way to directly heat water, electrically. Temperature settings can be programmed between 35°C-55°C using the control panel.
Specification:
- Water Pressure: Min 2 Bar
- Water Connection: 1/2" BSP
- Power Rating: 18, 21, 24, 27Kw
- Diamensions: (W) 239mm x (D) 96mm x (H) 468mm
- Product Appovals: WRAS, CE, UKCA
- Warranty: 1 Year, on site parts and labour
Installation Requirements:
The Instananeous water hear must be installed, commissioned and maintained by a competent installer who will then be responsible for adhering to all relevant standards and regulations. The appliance must be permanently connected to the supply through an isolating switch with a contact separation of at least 3mm in all poles and be protected by a suitably rated RCD.
About Zip:
Zip has the largest and most established network of directly employed engineers covering the UK, for support, service and maintenance.
N.B. Instantaneous water heating is the most energy efficient way of producing hot water electrically, however, the delivered water temperature will be dependant upon the incoming water temperature, supply voltage and selected flow rate.
Click below to download Zips DCXNEXT instantaneous installation instructions (Opens new window)
