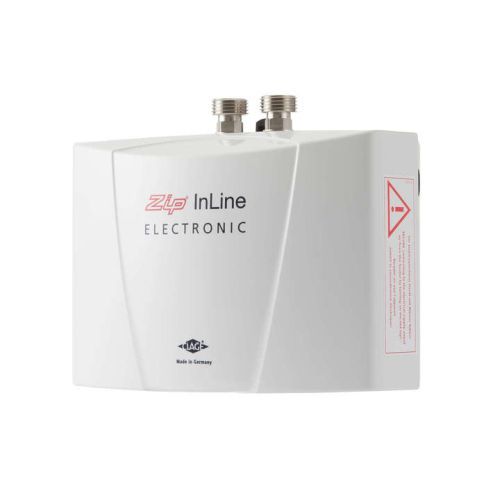

Zip ES6 Inline Instantaneous Water Heater For Handwashing 6.0Kw
Zip ES6 Inline Instantaneous Water Heater For Handwashing 6.0Kw
Instantaneous water heater for handwashing
Features And Benefits:
- Flow rate of 1.7 – 3.3 litres/minute*
- Choice of 3.1, 4.8 and 6.0 kW ratings#
- Unlimited hot water supply for handwashing
- Bare wire technology for fast heat up
- Smart, compact design
- Intended for use with taps having removable M22/M24 nozzles
- Heats up only the water drawn off – no standing heat loss
- Sophisticated electronics adjusts power applied to compensate for inlet pressure and temperature variations
* Delivering 38°C at 240V and 12°C supply temperature. # At 240V.
Description:
- The most energy efficient way to directly heat water electrically
- Zip InLine ES provides instant hot water for handwashing
- Heating power is controlled electronically to maintain set temperature
- Sophisticated electronics adjusts power applied to compensate for inlet pressure and temperature variations
- Outlet temperature factory set to 38°C, but can be installer adjusted between 30°C and 50°C
- Stainless steel bare wire heating element for fast heat up
- Double pole over-temperature protection
- Intended for use with taps having removable M22/M24 nozzles
Location:
The appliance must be installed in a frost-free environment. Zip ES products comply with IP24 and may be installed in Zone 1. The unit should be positioned as close as possible to the outlet to minimise heat loss.
Plumbing:
The appliance is intended for connection to the mains water supply. It should be installed by a suitably qualified person. It may be used as an unvented installation or as a vented installation as described inthe fitting instructions.
For correct operation it is essential that the special tap nozzle supplied is fitted to the tap spout. Intended for use with taps having removable M22/M24 nozzles
Not recommended for use with thermostatic mixing valves or taps.
Electrical:
The appliance must be earthed and connected to the mains supply by means of permanent wiring through suitable isolation, having a contact separation of 3mm in all poles and should only be operated if protected by an RCD rated at 30mA.
Installation must be in accordance with current IEE regulations.
About Zip:
Zip has the largest and most established network of directly employed engineers covering the UK, for support, service and maintenance.
Click below to download Zips ES6 instantaneous technical information (Opens new window)
